CAKJ-XXS-288E Central Signal Alarm System
The CAKJ-XXS-288E Central Signal Alarm System is a centralized management microcomputer signal alarm system designed specifically for the signal system of power plants and substations. It features strong anti-interference ability, simple operation, convenient installation and use, and low maintenance.
1. Overview
The CAKJ-XXS-288E Central Signal Alarm System is a centralized management microcomputer signal alarm system designed specifically for the signal system of power plants and substations. It features strong anti-interference ability, simple operation, convenient installation and use, and low maintenance.
This alarm system adopts a distributed structure. The “alarm host” collects alarm data from the “open-in module” through the field bus, and transmits the obtained alarm signal to the “alarm window box” and “alarm sound” according to the internal setting instructions of the host, completing the sound and light alarm of the fault signal.
This product is widely used in power, petroleum, chemical, metallurgical, and coal industries, and is a highly intelligent product for power and industrial automatic monitoring and signal alarm.
System Components:
- Light Word Plate Box
- Host
- Open-in Module
- Drive Module
2. Model Number
CAKJ-XXS-288E Central Signal Alarm System (including the following components):
- CAKJ-XXS-MZQ Central Signal Alarm Device (Host): 1 set

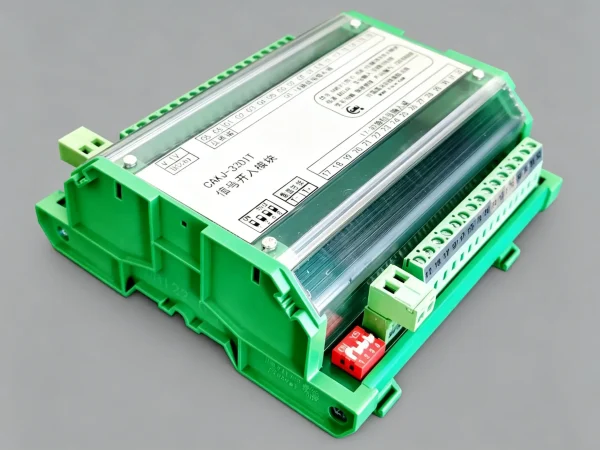

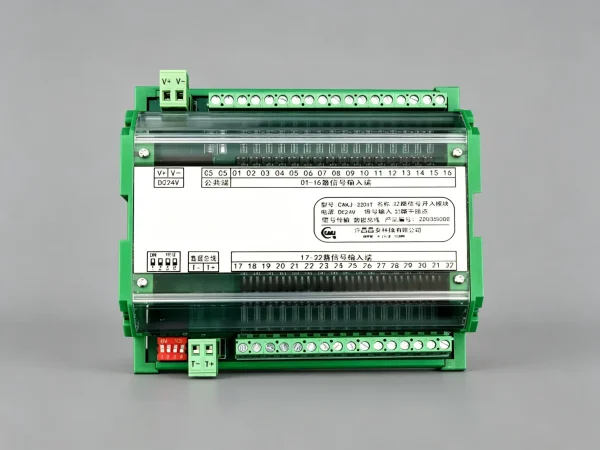

- CAKJ-32DIT 32-channel signal open-in module: 9 sets
- CAKJ-XXS-64GP 64-channel light word plate box: 4 sets
- CAKJ-XXS-32GP 32-channel light word plate box: 1 set
- CAKJ-MZQ-RJ45 Light Word Plate Drive Module: 1 set
- CAKJ-KDY-24 Switching Power Supply: 2 pieces
- CAKJ-DL Electronic Bell: 1 piece
- CAKJ-DD Electronic Whistle: 1 piece
- LA38-11-φ22 Function Button (Red, Blue, Yellow, Green, White): 1 piece each
3. Functional Features
- LCD Display: The alarm host panel is equipped with a liquid crystal display to show the operating clock, open-in module abnormality, signal alarm records, etc. It also has a self-checking function after power-on.
- Function Buttons: Includes external function button terminals for test (test light), confirmation (accept, mute, reset, recall, etc.).
- Fault Recording Function: Records the time of occurrence and removal of alarm signal faults (Year, Month, Day, Hour, Minute, Second).
- Confirmation Modes: Supports manual and automatic confirmation. The automatic confirmation time (0-200s) can be set.
- Signal Delay Alarm: The delay alarm time (0-9999ms) can be set.
- Alarm Type Distinction: Can distinguish between Accident signal (F), Warning signal (W), and Position signal (L).
- Light Word Plate Color: Red and yellow-green colors can be chosen to distinguish more clearly and intuitively according to the alarm type.
- Input Signal Type: Can be set to Switch type contact (K), Switch type hold contact (E), and Pulse type hold contact (P). (Note: Refer to manual for details)
- Normally Open/Closed Selection: For each signal, it can be set to Normally Open change to Normally Closed alarm (O, default) or Normally Closed change to Normally Open alarm (C).
- Signal Masking: Allows you to arbitrarily mask or start the input signal alarm.
- Built-in Buzzer Sounds:
- Accident: Long sound “Di—“
- Warning signal: Short sound “Di, Di, Di, Di”
- Position signal: No sound
- External Alarm Output: Equipped with accident and warning signal alarm output contacts to start the electric whistle and bell, strengthening the sound alarm effect.
- Power Loss Output: Features a device power disappearance contact output.
- Digital Communication: Equipped with an RS485 serial communication interface supporting the MODBUS communication protocol.
