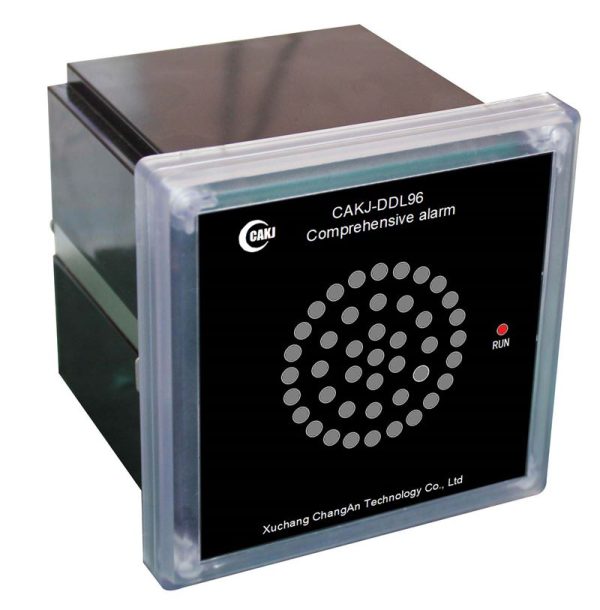

CAKJ-DDL96 Comprehensive Alarm
1. Overview
CAKJ-DDL96 comprehensive alarm is a low-power, interference-free, high-volume electronic alarm device designed for central signal alarm in power systems. Using a microcontroller to simulate the sound spectrum of an electromagnetic bell and whistle, the similarity between its sound and that of an electromagnetic bell and whistle is 98%.
2. Technical Parameters
Working power supply: AC/DC 80~265V, wide voltage AC/DC universal, DC24V specified when ordering
Power consumption: not exceeding 3VA
Sound volume: 120dB
Electric bell: when terminals 9-10 are disconnected, the electric bell sounds an alarm
Electric horn: terminal 9-10 short-circuited, electric horn sounds alarm
Working mode: ① Short circuit terminals 7-8, power-on alarm; ② Terminal 7-8 connected to alarm contact, sounds alarm in case of fault
Volume control: short circuit terminals 6-5, high volume H; short circuit terminals 4-5, low volume L
Isolation voltage: input terminal to ground 3000V, 1 minute
Insulation resistance: >100MΩ
Anti-interference capability: withstands GB/T 17626.4-2008 Chapter 5, Level 4 electrical fast transient burst immunity test
Applicable environment: temperature -25~55°C, humidity ≤90%RH
Mean time between failures: not less than 50000 hours
3. Dimensions
Dimensions: 96x96x80mm, hole size: 87x87mm
