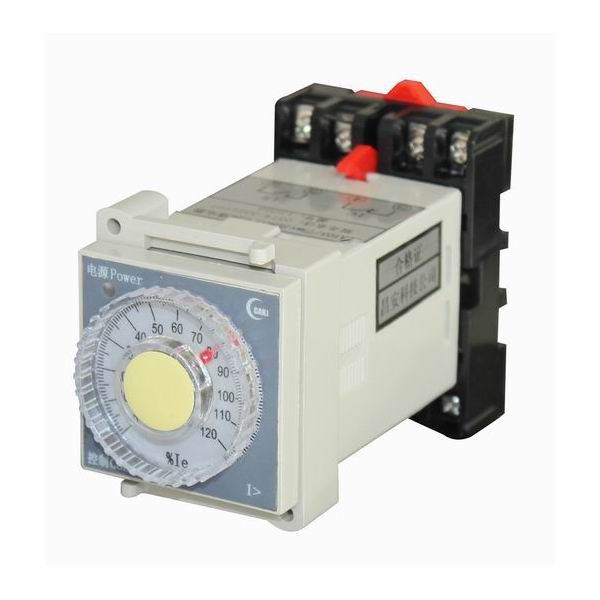

WDL100 Adjustable Current Relay
1. Overview
WDL100 adjustable current relay is suitable for high-voltage 10kV or low-voltage 400V lines and electrical equipment, used as a single-phase current detection and control device. With an adjustable range of 0~5A, high adjustment and detection precision, and fast action time, it is a simple and reliable current relay protection for high and low voltage systems.
2. Technical Parameters
Rated current: 5A, 1A, 75mV, 4-20mA
Over-current adjustment range: 0%-120%Ie
Control precision: 0.5%Ie
Return coefficient: not less than 0.9
Action time: not more than 30ms
Working voltage: AC/220V (80~265V) or DC24V
Output: 1 or 2 independent contacts, AC220V 3A
Dimensions: 48x48x90mm, opening 45x45mm
Mounting: 35mm rail
