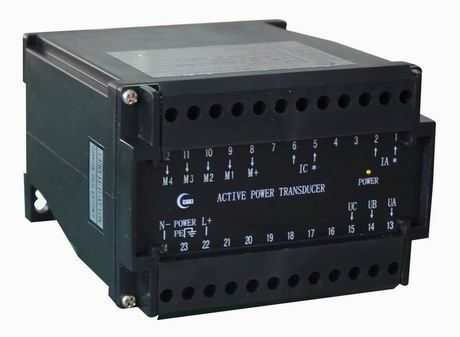

CAPX-P Three-phase Active Power Transmitter
1. Overview
CAPX digital active power transmitter is a device that calculates the active power of the measured current and voltage signals through an internal CPU, converts them into linearly proportional output DC current and voltage, and isolates them. It is equipped with corresponding indicator instruments or devices and is a necessary analog acquisition module for power systems, remote control devices, automation control systems, etc.
2. Main Technical Requirements
Accuracy level: 0.2
Working power supply: AC/DC 220V (limit 80~265V)
Input current: CT 0-5A (0-1A), user-selected
Input voltage: PT 100V; 110V, 220V/380V; user-selected
System frequency: 50 or 60Hz
Active power: P=1.732*I*U*cosφ (3P3); P=(IA*UA+IB*UB+IC*UC)*cosφ (3P4)
Transmission output: current 0-20mA, 4-20mA, 4-12-20mA, load resistance 500Ω; voltage 0-10V, load resistance 10kΩ
Isolation withstand voltage: power supply-input-output, 2kV, 1min
Operating environment: ambient temperature -20°C~55°C, relative humidity ≤90%RH
Executive standard: GB/T13850.1-92
3. Model Specification
CAPX-P2431A: current 5A, voltage 110V, 3P3W, active power P=-953W~0~+953W, corresponding output 4-12-20mA, power supply AC/DC220V
4. Dimensions and Wiring
Dimensions: 110x75x120mm; mounting method: 35mm rail card loading
Note: When wiring, please pay attention to “*” as the current inflow end and connect correctly according to the wiring diagram. When the working power is correctly connected, the power indicator on the panel lights up.
